ARMY 365 INFORMATION PAGE


NOTE:  The Army has chosen to make Email and Teams ONLY available via web browser on personally owned computers.  Meaning no ability to use the Outlook or Teams app on your personal owned computer / phone.



Please use Microsoft Edge or Google Chrome.

NOTE:  Only use Firefox if you have it set up for CAC already (which requires ActivClient)





PLEASE keep your information updated in the Global Address List (ONLY YOU can do this)



With Army 365 being new for Army personnel, this page will grow with information



*****************************************



To access Army 365 sites follow the steps below, you must also already have an account created



Windows Installation Steps
Step 1: Obtain a CAC Reader
Step 2: CAC Reader driver
Step 3: DoD Certificates
Step 4: Select the Authentication certificate when prompted


Army 365 Webmail link:

https://webmail.apps.mil



Army 365 Teams link:

https://dod.teams.microsoft.us



Army Google Workspace link (SPC and below):

https://mail.google.com/a/usa.army.mil

Enter your userid@usa.army.mil

(example:  michael.j.danberry.mil@usa.army.mil)

Specific steps for Army Google Workspace can be found on this page:



Health.mil link
(Windows and Mac ONLY, No Chrome OS)

https://avhe.health.mil

Instructions for this process can be viewed here: https://thewesslers.com/avhe download Citrix Workspace App from https://citrix.com/download once logged in, select Apps (in top row), type:  webmail in the search box, then select it.

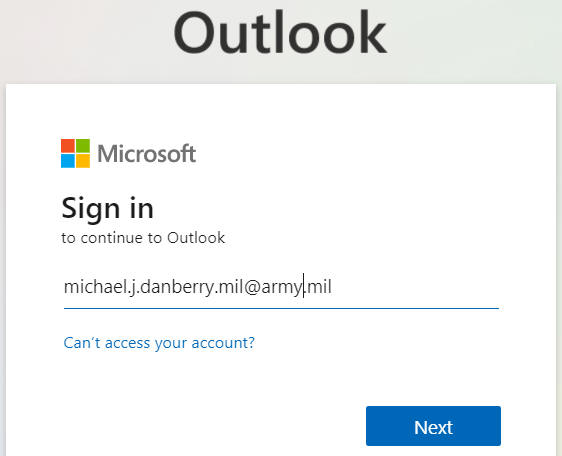

Problem 1:  The very first time you go to either Webmail or Teams links above you'll be greeted with a screen like this, you will have to manually type in your full email address.  It is identical to your former Enterprise Email address, except @mail.mil is replaced with @army.mil (Army Users ONLY)



After you have typed in your new email address, click Next

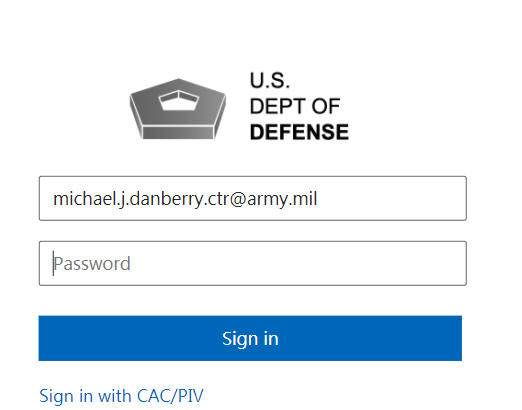

Click Sign in with CAC/PIV

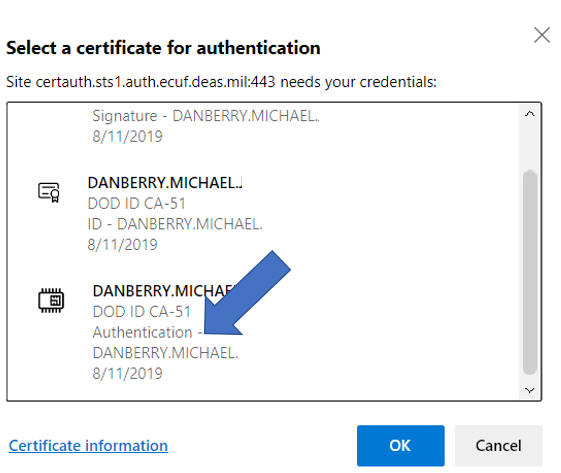

Select the CAC certificate with the word: Authentication, then click OK







Enter your 6-8 digit CAC PIN, then click OK

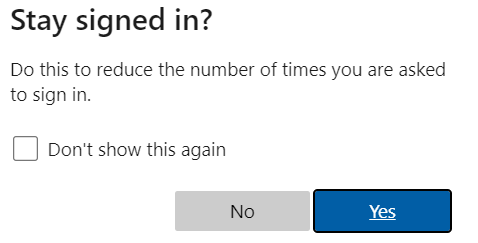

You can select Yes or No  Either way, it will ask you this every time











Problem 1: How can I check my Army 365 Email other than via webmail when I'm not in the office?



INFORMATION:  The Army 365 Email does NOT have the ability to be accessed using Outlook or other email program on a computer that is not on the .mil or .gov network.  This means it cannot be set it up on a personal computer using Outlook.



Solution 1-1:  Yes, you can forward it but, ONLY to another .mil or .gov email address.



Solution 1-2:  Yes, use your government owned / provided mobile device: iPhone, iPad, or Android phone



Solution 1-3:  Yes, bring your government computer with you and use VPN



Solution 1-4:  If your organization uses Citrix, you may be able to use it to login with your CAC enabled home computer and access your Outlook via the Citrix client.



Solution 1-5:  You can check your email via an iPhone or iPad using OWA or Android using a mobile CAC reader and middleware.



Solution 1-6: Utilize Hypori (CAC enabled link to AESMP) on your personal mobile device.











Problem 2:  Your Email has transitioned to Army 365 (Army.mil) and your information is incorrect in the Global Address List (GAL).



Solution 2-1:  Picture guide created for US Army Reserve Soldiers, but will work for everyone



Solution 2-2If your rank is wrong in the Global Address List (examples: 1SG vs. MSG, SPC vs. CPL vs. SP4, or SGM vs. CSM), you have to visit an ID card office to get it corrected.









Problem 3: How do I add my PIV Authentication certificate to my CAC, so, I can access my email?

.

Information:  All CACs issued after February 2018 have the PIV / Authentication certificate already active, therefore no reason to go through this process



Solution 3:  If your CAC was issued before February 2018, then Follow guidance on PIV page.  This should not be an issue as max life of a CAC is 3 years.  So, a February 2018 CAC would have expired in February 2021.



NOTE: The process will work for changing the email address on the CAC from your former @mail.mil to your new @army.mil or @usa.army.mil (Google Workspace users ONLY)



.



Problem 4:  The time and days are not correct in my webmail calendar and or email messages



NOTE:  It is possible when you initially set up your webmail access you selected the defaults, which included the time zone set to Zulu time.



Solution 4: Click the Gear (near top right corner of web page),

Click View All Outlook settings (bottom right corner),

Click General (left side column),

Select Language and time,

Change Current Time Zone to your location in the world.

Click the X at top right when finished.









Problem 5:  How do I get support for my Army 365 account?



Solution 5-1 (when at Home or Work):  Contact the Army Enterprise Service Desk - Worldwide by calling:  866-335-2769 24x7 or go to:  https://www.aesmp.army.mil











Problem 6:  I have PCSd to a new installation / location.  How do I update my information in the Army.mil Global Address List?



Solution 6:  Look at Solution 2-1 above











Problem 7:  I am stationed in [or visiting] a foreign country and am unable to access my military email from my personal computer.  What can I do?  Also helps problems accessing DoD sites from the USA when receiving messages regarding DNS.



Solution 7-1:  Try changing your DNS server IPs and see it this works for you.

Here's How in Windows 11 to manually configure the DNS settings.

1.  Right click on your Wireless / Ethernet connection (down by your clock)

2.  Select Open Network & Internet settings

3.  Click your active internet connection (Wi-Fi or Ethernet)

5.  Select your internet connection name properties

6.  Scroll down to DNS server assignment and click Edit

7.  Select Manual from the drop down

8.  Toggle the IPv4 button to the right, it should now show the word on

9.  This is where you manually add DNS server IPs:

 NOTE: It is up to you if you want to use Quad 9 or Cloudflare.  You might try each of them separately.



Quad 9 - enter 9.9.9.9 for Preferred DNS server, and 149.112.112.112 for alternate DNS server.  Click Save.  Wait a few minutes, then try to access the site again.

  or

Cloudflare - enter 1.1.1.1 for Preferred DNS server, and 1.0.0.1 for alternate DNS server. Click Save.  Wait a few minutes, then try to access the site again.

.

If you are a Spectrum or Century Link customer, you may need to change the DNS on your router, changing it on the client doesn't seem to allow access for some users like the ideas above.



Solution 7-1a:  Try changing your DNS server IPs and see it this works for you.

Here's How in Windows 10 to manually configure the DNS settings.

1.  Right click on your Wireless / Ethernet connection (down by your clock)

2.  Select Open Network and Sharing Center, or Open Network & Internet settings

3.  Click Change Adapter Settings, or Change adapter options

4.  Right Click on your active internet connection (example: Wi-Fi or Local Area Connection), select Properties

5.  Under This connection uses the following items: scroll down and click on Internet Protocol Version 4 (TCP/IPv4), then click Properties

6.  Select the option Use the following DNS server addresses:.  This is where you manually configure your DNS servers:

 NOTE: It is up to you if you want to use Quad 9 or Cloudflare.  You might try each of them separately.



Quad 9 - enter 9.9.9.9 for Preferred DNS server, and leave 149.112.112.112 for alternate DNS server.  Click OK, then click Close

  or

Cloudflare - enter 1.1.1.1 for Preferred DNS server, and 1.0.0.1 for alternate DNS server. Click OK, then click Close

.

If you are a Spectrum customer, you may need to change the DNS on your router, changing it on the client doesn't seem to allow access for some users like the ideas above.



Here's How on a Mac to manually configure the DNS settings.

1.  Click Apple icon -> System Preferences, Network.

2.  Select the network connection service you want to use (usually Wi-Fi or Ethernet, unless you named it something else) in the list, then click the Advanced (button).

3. Click the DNS (tab), click the (+) at the bottom of the DNS Servers list.  This is where you will add DNS server IP addresses.

NOTE: It is up to you if you want to use Quad 9 or Cloudflare.  You might try each of them separately.



Quad 9 - enter 9.9.9.9 and leave alternate DNS blank

  or

Cloudflare - enter 1.1.1.1 for first line and 1.0.0.1 the second line



4. When you're finished, click OK, then close the open window



If you are a Spectrum customer, you may need to change the DNS on your router, changing it on the client doesn't seem to allow access for some users like the ideas above.



Solution 7-2:  Overseas personnel may need to try a VPN solution



Solution 7-3:  Contact the Army Enterprise Service Desk to let them know you are having problems.









Problem 8:  You are trying to update ID Card Office Online (IDCO) (formerly MilConnect) [are married to another Service member] and cannot get your information to show you as the Sponsor.  You are probably showing up as a family member.



Solution 8Follow guide in problem 2 above









Problem 9:  What do the 3 letters mean after your name and before the @ sign?

Example:  first.m.last.mil@army.mil



Information 9:

email Personas



Information 9a:

The Authentication certificate is comprised of your 10 digit DoD ID number followed by 6 more digits



The 1st digit is the Organizational Category

1 = Federal Government Agency

2 = State Government Agency

3 = Commercial Enterprise

4 = Foreign Government

Source:  Paragraph 5.1.5.2.8 https://militarycac.org/files/DoD_PIV_Transitional_Implementation_Guide.pdf



The 2nd through 5th digits are the Agency Code

2100 = Department of the Army

5700 = Department of the Air Force

1700 = Department of the Navy

1727 = Department of the Navy - US Marine Corps

9700 = Department of Defense - Other Agencies

7008 = US Coast Guard

7520 = US Public Health Service

1330 = National Oceanic and Atmospheric Administration

Source:  Paragraph 5.1.5.2.1  https://militarycac.org/files/DoD_PIV_Transitional_Implementation_Guide.pdf



The 6th digit is the Person / Organization Association Category

1 = Employee, example: NAF (Non Appropriated Funds)

2 = Civil, example:  CIV or LN (Civilian or Local National)

3 = Executive Staff

4 = Uniformed Service, example: MIL (Military)

5 = Contractor CTR (Contractor)

6 = Organization Affiliate, example: NFG / Volunteer / Foreign Military (Non-Federal Government)

7 = Organization Beneficiary

Source:  Paragraph 5.1.5.2.10  https://militarycac.org/files/DoD_PIV_Transitional_Implementation_Guide.pdf

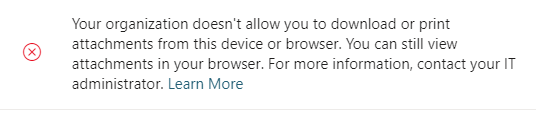

Problem 10:  I am receiving the following error message "Your organization doesn't allow you to download or print attachments from this device or browser.  You can still view attachments in your browser.  For more information, contact your IT administrator."  when trying to save attachments on a computer NOT on the military network (aka: home computer)





Solution 10:  Have the person send you the attachment(s) via https://safe.apps.mil





Problem 11:  I am a SPC (or below) in the Army / Army Reserve / Guard and am being told I will not get an @army.mil email address.  Is this correct?



Solution 11:  Yes, however, the current plan is to provide you a Google Workspace account.  See the link near the top of this page for the link and how to access it.





Problem 12:  I need to be able to utilize encrypted email.  How can I do configure my computer?



Solution 12:  Follow guidance on https://militarycac.com/Army365smime.htm



 If you have questions or suggestions for this site, contact Michael J. Danberry
